Inta Standard Doc M Pack With 6L Low Level Disabled Toilet & Mixing Valve – Blue

The Inta Standard Doc M 6L Low Level Pack Blue with Mixing Valve a complete DOC M pack from the care range of inta ideal for elderly and disabled individual. The Inta Doc M WC packs complies with the approved Document M of the Building Regulations and BS8300:2009.

Manufactured to the highest standards, this superb value Doc M pack comes complete with a Supplied with a Supplied with a 1 year guarantee from the manufacturer.

Product Features

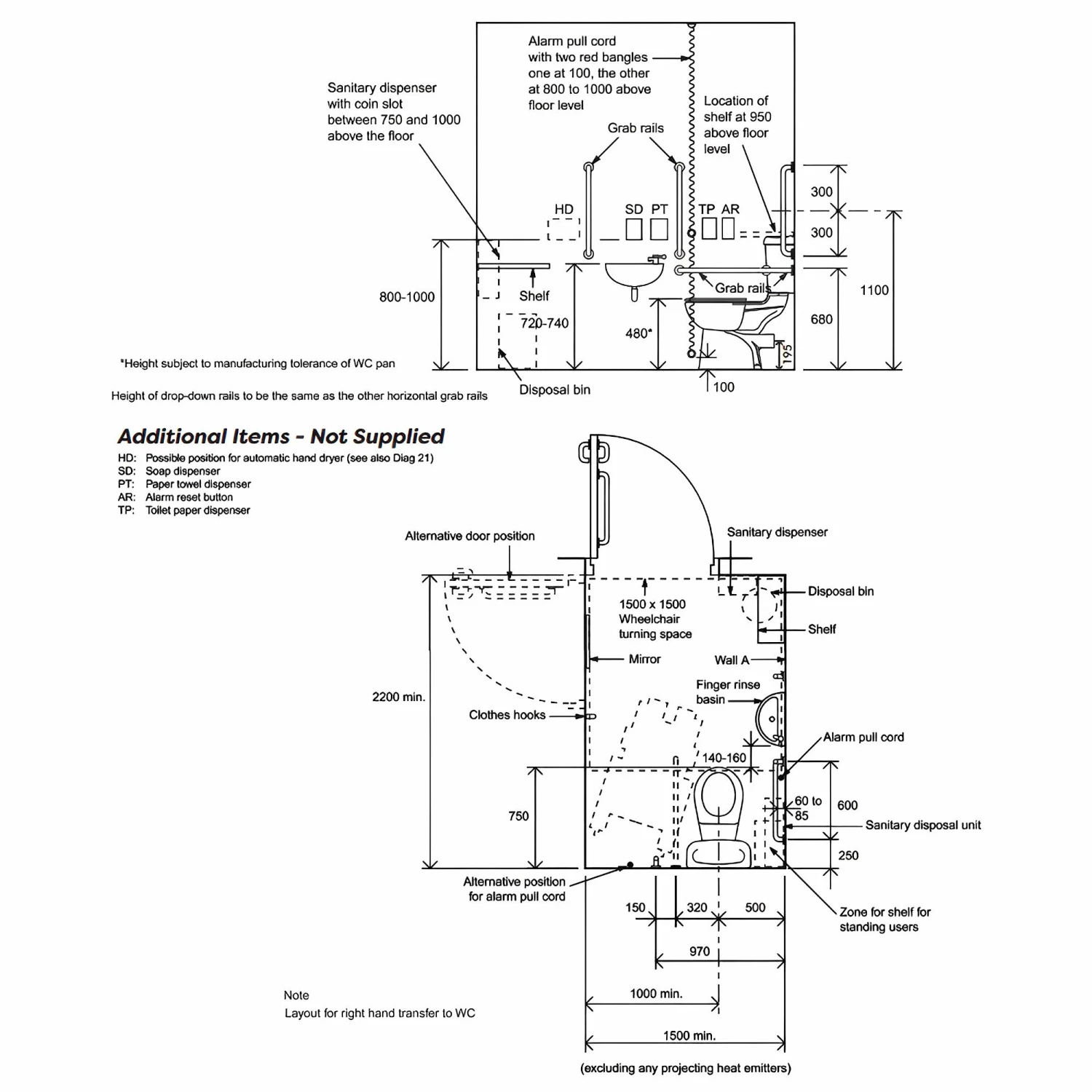

• The drawing on Dimensions tab illustrates a left hand layout, for right hand layouts this must be reversed

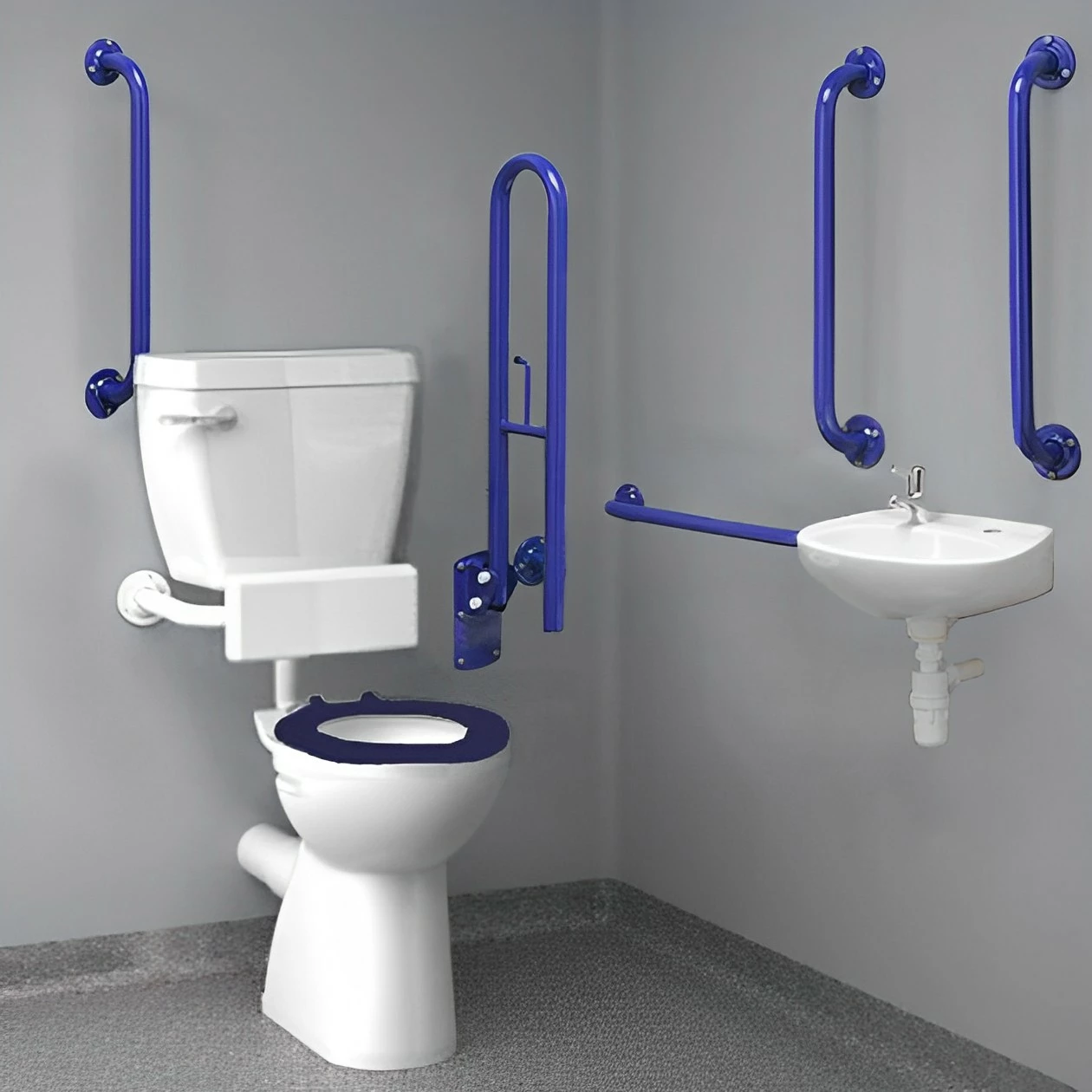

• Image is for illustration purpose only
• 1 x wall hung Basin
• Support rails [Grab Bars]
• Support rail with toilet roll holder
• Padded back rest
• Low level HO pan
• Plugged and screwed to the floor (Fixings not supplied)
• Supplied complete with blue toilet seat
• Seat ting and hinges
• 6ltr close coupled cistern & spatula lever
• Plugged and screwed to the wall (Fixings not supplied)
• Wall hung 450mm wide basin with predrilled 2 tap hole
• Lever operated basin mixer tap
• 1 1/4″ basin waste
• Include bottle trap
• Wall fixing brackets
• Tap hole stopper
• Mounted on brackets provided using suitable fixings (fixings not provided)
• 600mm support rails (x 5)
• Hinged support rail (x 1)
• Support rails comes exclusive in blue finish
• Intamix TMV3 approved 15mm Thermostatic Mixing Valve
• Complies with document M of the Building Regulations and BS8300:2009
• Operating pressure range of 0.1 to 5 bar
• TMV3 approved shower
• Supplied with a 1 year guarantee from the manufacturer
